Door station/Video parameters Supplement light IR light, up to 3 m Resolution Stream resolution: 1280 x 720@60fps FOV Horizontal: 117°, Vertical: 70°, Diagonal: 141° Door station/Audio parameters Audio input Built-in omnidirectional microphone (≤50 cm) Audio output Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB) Door station/Device interfaces Lock control 1 relay, max 30 V 1 A Debugging port 1 Four-wire 1 four-wire interface Door station/General Button 1 physical button(s) Power supply 12 VDC Accessories Power consumption Max. 4 W Working temperature -30 °C to 60 °C (-22 °F to 140 °F) Working humidity 10% to 90% Dimensions 145 mm × 55 mm × 24 mm (5.71" × 2.17" × 0.94") Application environment Outdoor Installation Surface mounting Protective level IP65, IK08 Material Metal Indoor station/Display parameters Linked indoor extensions capacity 2 Linked indoor extensions capacity 2 Linked analog camera 1 Indoor station/Device interfaces Power supply input 12V DC Debugging port 1 Four-Wire interface 4, 2 for indoor extensions, 2 for door phones DIP switch 1 BIT BNC 1 Indoor station/General Button 4 physical buttons Power supply 12 VDC Power consumption ≤4 W Working temperature -10° C to + 55° C (14° F to 131° F) Working humidity 10% to 90% Dimensions (W × H × D) 178 mm x 132 mm x 19 mm (7.01" × 5.20" × 0.75") Installation Surface mounting Application environment Indoor

Read more less

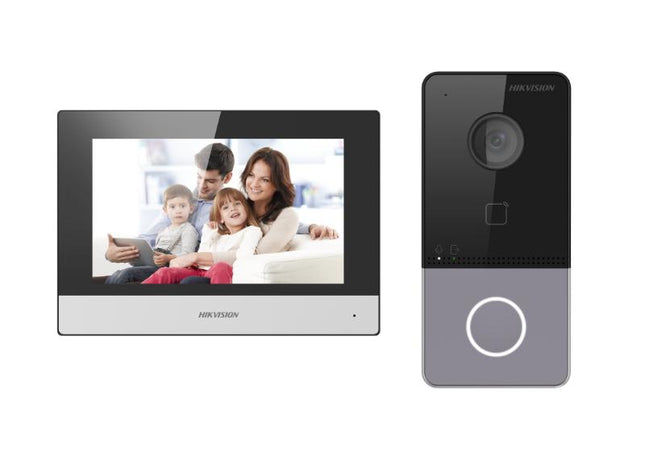

IP video intercom kit for villa or house, only one call button Door station/System parameters Operation system Embedded Linux operation system Flash32 MB RAM128 MB Door station/Video parameters Camera2MP HD camera Night vision Low illumination IR supplement mode:3 m Backlight compensation Support Digital noise reduction Support WDR True WDR Field of view Horizontal: 129° Vertical: 75° Video Compression StandardH.264 Stream Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps Motion detection Support Flash-avoid frequency50 Hz, 60 Hz Door station/Audio parameters Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker Audio quality Noise suppression and echo cancellation Audio compression standardG.711 U Audio compression Rate64 Kbps Audio intercom Two-way audio communication Door station/Network parameters Network protocol TCP/IP, RSTP Wired network10/100 Mbps Ethernet Door station/Device interfaces RS-4851 Alarm input4 Debugging port1 Grounding1 TAMPER switch1 Door station/General Power consumption＜ 10 W Working temperature-40° C to 53° C(-40° F to 127.4° F) Working humidity10% to 95% Dimension138 mm × 65 mm × 27 mm Installation Surface mounting Protection levelIP65 Indicator2 Power supply IEEE802.3af, standard PoE 12 VDC Indoor station/System parameters Operation system Embedded Linux operation system Memory128 MB Flash32 MB Indoor station/Display parameters Display screen7-inch colorful TFT screen Display resolution1024 × 600 Operation method Capacitive touch screen Indoor station/Audio parameters Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker Audio quality Noise suppression and echo cancellation Audio compression standardG.711 U Audio compression Rate64 Kbps Indoor station/Network parameters Wired network10/100 Mbps self-adaptive Wireless network Wi-Fi 802.11 b/g/n Protocol TCP/IP, SIP, RTSP RS-4851 RJ-45 10/100 Mbps self-adaptive Indoor station/Device interfaces RS-4851 Alarm input8-ch alarm inputs Relay output2 TF card Max to 32 G, SD 2.0 or lower version Indoor station/General Power consumption≤ 6 W Working temperature-10 °C to 55 °C (14 °F to 131 °F) Working humidity10% to 90% Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
