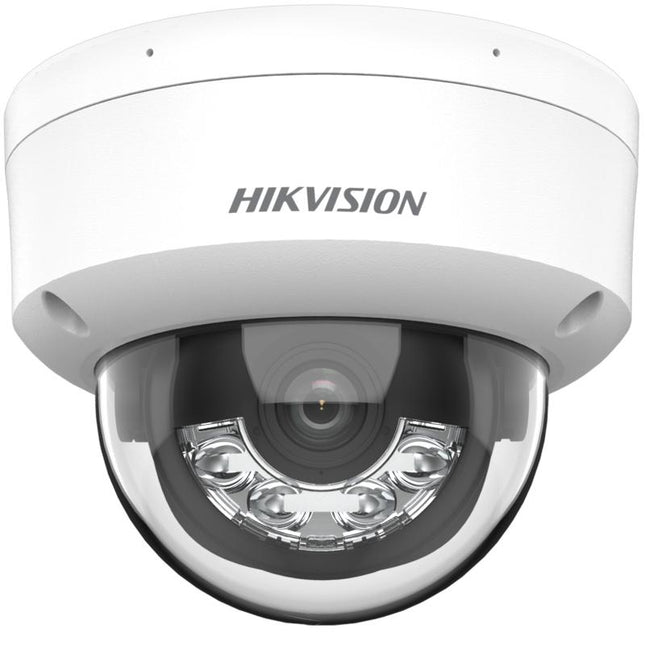

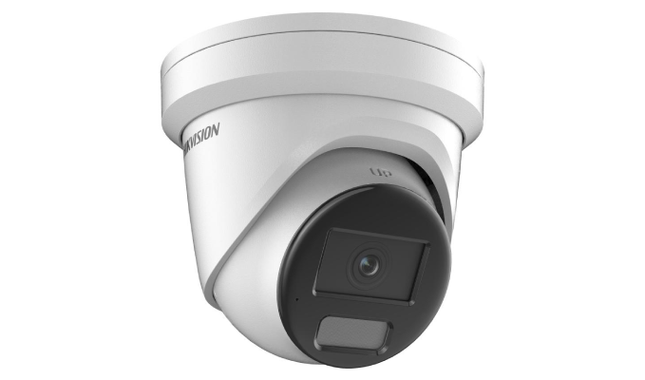

High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Built-in microphone for real-time audio security Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Water and dust resistant (IP67) and vandal resistant (IK08)

Read more less

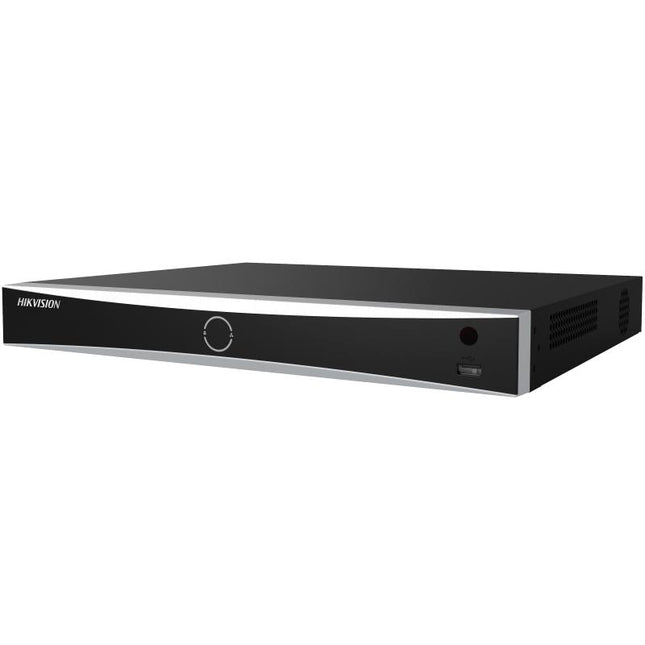

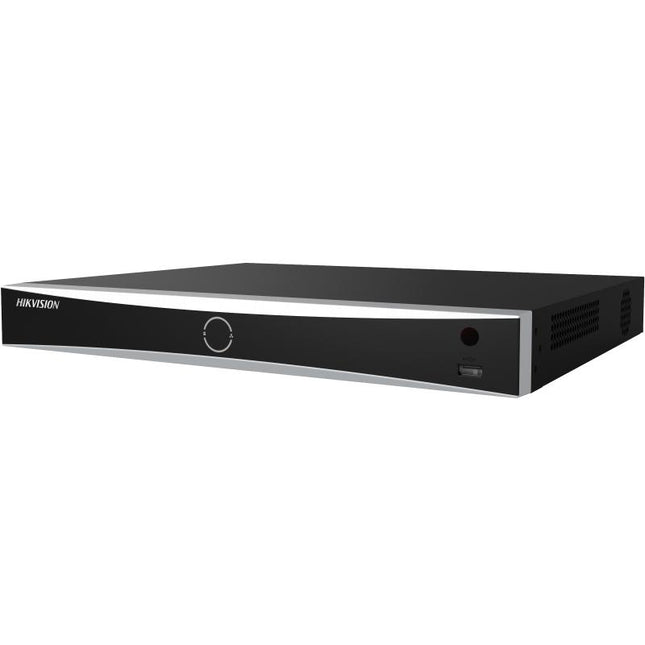

Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces H.265+/H.265/H.264+/H.264 video formats Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity Up to 40 M bps incoming bandwidth Adopt Hikvision Acusense technology to minimize manual effort and security costs Intelligent Analytics AI by Device Facial recognition, perimeter protection, motion detection 2.0 AI by Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA Facial Recognition Face Attributes N/A Facial Detection and Analytics Face picture comparison, human face capture, face picture search Face Picture Library Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB);Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) Facial Detection and Analytics Performance1-ch, 4 MP;1-ch, 8 MP Face Picture Comparison (Captured from Camera)2-ch Motion Detection 2.0 By Device All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm By Camera All channels Perimeter Protection By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm By Camera All channels Video and Audio IP Video Input4-ch Incoming Bandwidth40 M bps Outgoing Bandwidth80 M bps HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output ModeHDMI1/VGA simultaneous output CVBS Output N/A Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 V p-p, 1 KΩ, using the audio input) Decoding Decoding FormatH.265/H.265+/H.264+/H.264 Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback4-ch Decoding Capability AI on: 1-ch@8 MP (30 fps)/2-ch@4 MP (30 fps)/4-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) Stream Type Video, Video & Audio Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC Network Remote Connection128 APIONVIF (profile S/G); SDK; ISAPI Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface1 RJ-45 10/100/1000 M bps self-adaptive Ethernet interface PoE Interface4, RJ-45 10/100 M bps self-adaptive Ethernet interface Power≤ 50 W Standard IEEE 802.3af/at Auxiliary Interface SATA1 SATA interface Capacity Up to 10 TB capacity for each HDD USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Alarm In/Out4/1;N/A ;N/A (4/1 is optional) General GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian Power Supply48 VDC, 1.35 A Consumption≤ 10 W (without HDD and Po E off) Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10% to 90% Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9") Weight≤ 1 kg (without HDD, 2.2 lb.) Certification CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 Obtained Certification CE, FCC, IC, CB, KC, UL, Ro h s, Reach, WEEE, RCM, UKCA, LOA, BIS;CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA

Read more less

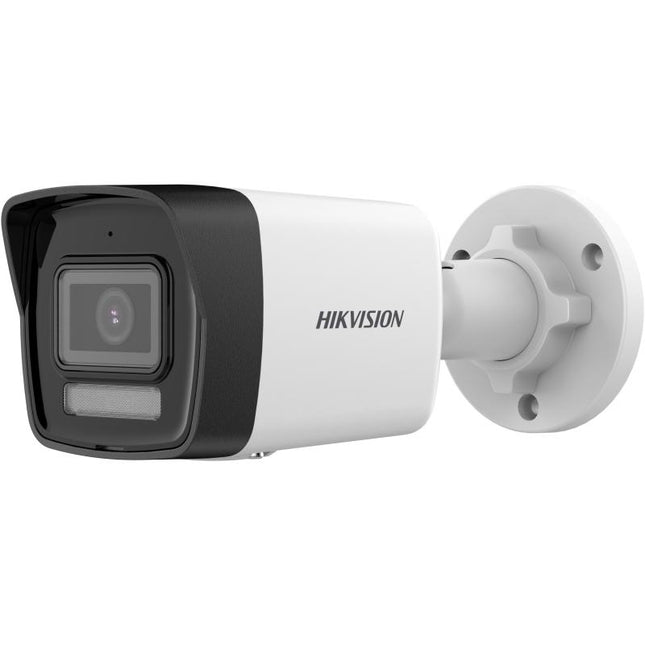

High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Built-in microphone for real-time audio security Water and dust resistant (IP67) Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Camera Image Sensor1/3" Progressive Scan CMOS Max. Resolution2560 × 1440 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR Shutter Time1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° Lens MountM12

Read more less

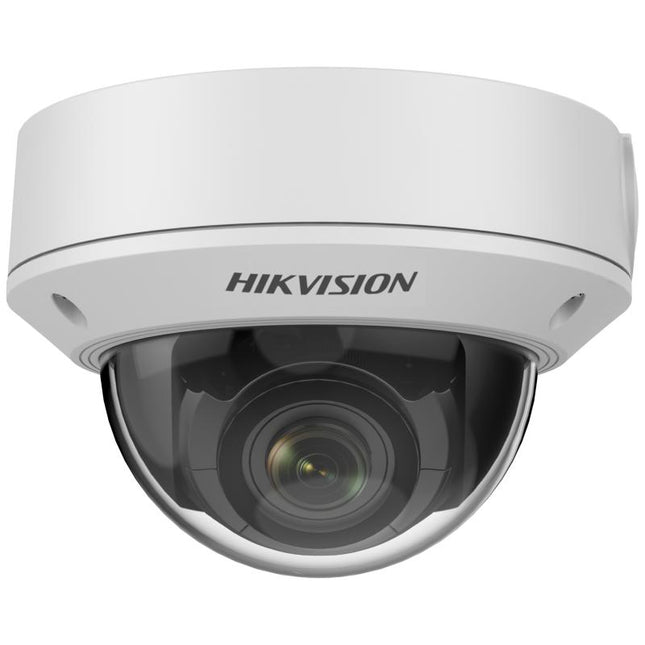

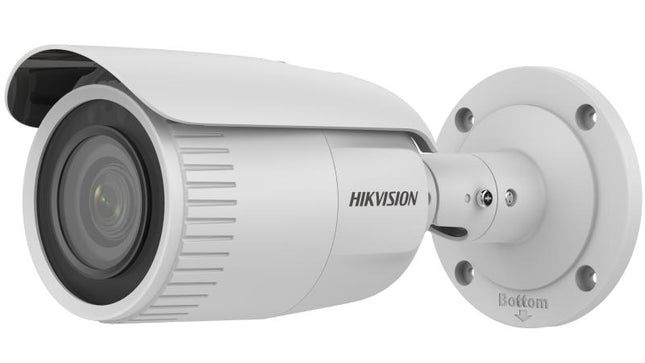

High quality imaging with 4 MP resolution Efficient H.265+ compression technology Clear imaging even with strong back lighting due to 120 dB WDR Up to 256 GB SD card slot for storage 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Camera Image Sensor1/3" Progressive Scan CMOS Max. Resolution2560 × 1440 Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR Shutter Speed1/3 s to 1/100,000 s Wide Dynamic Range120 dB Day & Night IR Cut Filter   Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° Lens Lens Type Varifocal lens, motor-driven lens, 2.8 to 12 mm   Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36° Lens Mount Ø14   Iris Type Fixed ApertureF1.6 Illuminator IR Wavelength850 nm IR Range Up to 50 m   Video Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 8 M bps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Region of Interest (ROI)1 fixed region for main stream Audio Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate-S: 8 kHz/16 kHz Environment Noise Filtering-S: Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View Up to 6 channels API Open Network Video Interface, ISAPI User/Host Up to 32 users. 3 levels: administrator, operator and user ClientiVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Image Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch Auto, Schedule, Day, Night   Image Enhancement BLC, 3D DNR Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm -S: 1 input,1 output, max. 12 VDC, 30 mA   Reset Key Yes Event Basic Event Motion detection, video tampering alarm, exception Linkage Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture General Power 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W Camera Material Metal Camera DimensionØ105 mm × 244.4 mm (Ø4.1" × 9.6") Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6") Camera Weight Approx. 1035 g (2.3 lb.) With Package Weight Approx. 1550 g (3.4 lb.) Storage Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian   General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Electrical Safety ProtectionIP67 (IEC 60529-2013)

Read more less

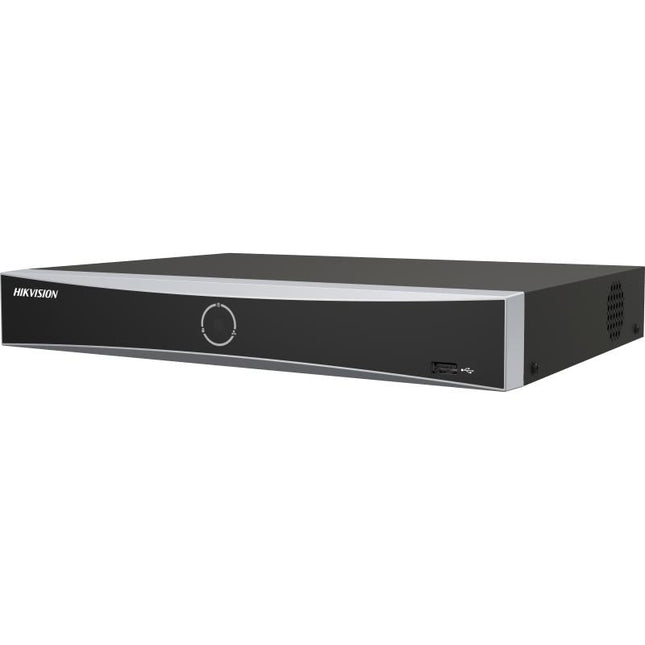

Up to 8-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity Up to 80 M bps incoming bandwidth Motion Detection 2.0 Human/Vehicle Analysis4 Video and Audio IP Video Input8-ch HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output Mode HDMI/VGA simultaneous output Incoming Bandwidth80 M bps Outgoing Bandwidth80 M bps Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω) Decoding Decoding FormatH.265+,H.265,H.264+,H.264 Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous playback8-ch Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Network Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface PoE Interface8, RJ-45 10/100 M bps self-adaptive Ethernet interface Power≤ 80W Standard IEEE 802.3 af/at Auxiliary Interface SATA2 SATA interfaces Capacity Up to 8TB capacity for each disk USB Interface2 × USB 2.0 General Power Supply48V| ,2.5A MAX Consumption≤ 15W Working Temperature-10 to +55º C (+14 to +131º F) Working Humidity10 to 90 % Chassis1U chassis Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0") Weight≤ 2.6 kg (5.7 lb)

Read more less

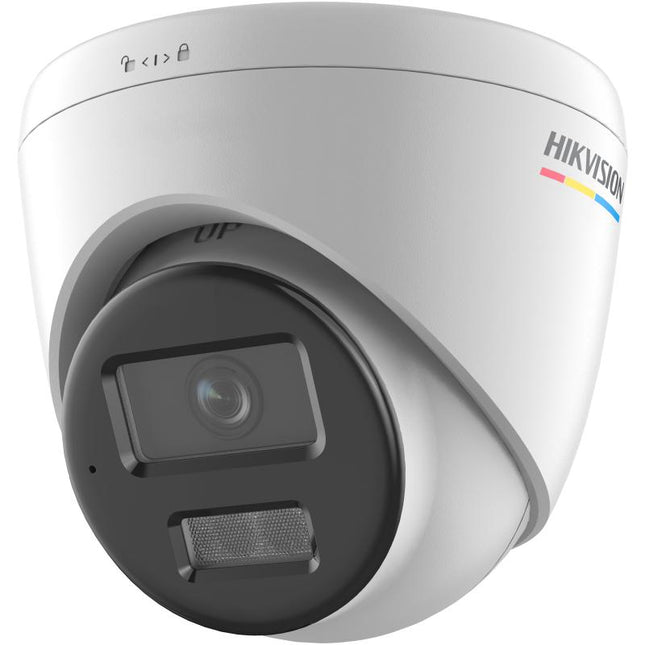

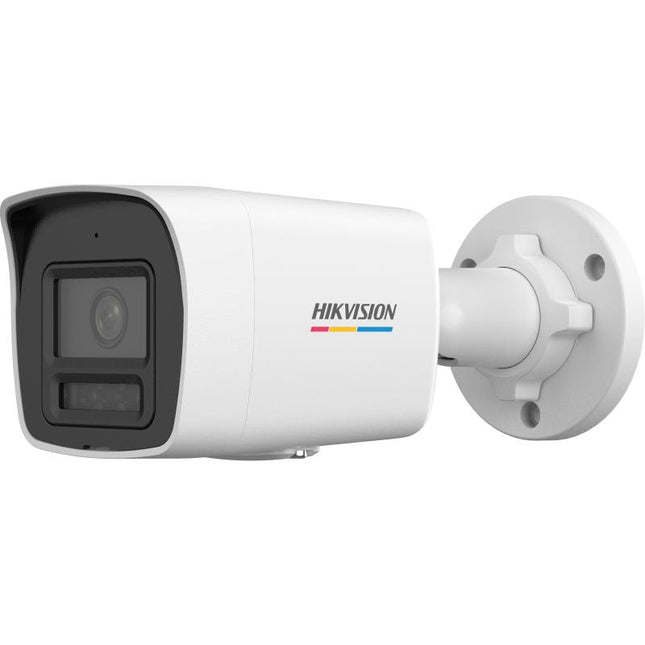

High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Built-in microphone for real-time audio security Water and dust resistant (IP67) Camera Image Sensor1/3" Progressive Scan CMOS Max. Resolution2560 × 1440 Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114° 4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93° Lens MountM12 Iris Type Fixed ApertureF1.0 DORI DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m Illuminator Supplement Light Type IR ,White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength850 nm Video Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 8 M bps H.264 Type Baseline Profile ,Main Profile ,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Region of Interest (ROI)1 fixed region for main stream Scalable Video Coding (SVC)H.264 and H.265 encoding Audio Audio Type Mono sound Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate8 kHz/16 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, UDP, QoS, FTP, SMTP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) User/Host Up to 32 users 3 user levels: administrator, operator, and user ClientiVMS-4200,Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image Image Settings Rotate mode ,saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Day/Night Switch Day Night ,Auto, Schedule Wide Dynamic Range (WDR)120 dB SNR≥ 52 dB Image EnhancementBLC,HLC,3D DNR Privacy Mask4 programmable polygon privacy masks Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage-F: Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB Built-in Microphone Yes Reset Key-F: Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception Linkage Upload to memory card (-F model supports), trigger recording(-F model supports), upload to FTP, notify surveillance center, send email, trigger capture General Power 12 VDC ± 25%, 0.5 A, max. 6.0 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W Material Metal & Plastic DimensionØ110 mm × 93 mm (Ø4.33" × 3.66") Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55") Weight Approx. 420 g (0.9 lb.) With Package Weight Approx. 656 g (1.4 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian General Function Heartbeat, anti-banding, mirror, password protection, password reset by email Approval EMC   CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 ProtectionIP67: IEC 60529-2013

Read more less

Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces H.265+/H.265/H.264+/H.264 video formats Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity Up to 80 Mbps incoming bandwidth Adopt Hikvision Acusense technology to minimize manual effort and security costs Intelligent AnalyticsAI by Device Facial recognition, perimeter protection, motion detection 2.0AI by CameraFacial recognition, perimeter protection, throwing objects from building, motiondetection2.0, ANPR, VCAFacial RecognitionFacial Detection and Analytics Face picture comparison, human face capture, face picture searchFace Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4MB, total capacity ≤ 1 GB)Facial Detection and AnalyticsPerformance1-ch, 8 MPFace Picture Comparison 4-chMotion Detection 2.0By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis forhuman and vehicle recognition to reduce false alarmBy Camera All channelsPerimeter ProtectionBy Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehiclerecognition to reduce false alarmBy Camera All channelsVideo and AudioIP Video Input 8-chIncoming Bandwidth 80 MbpsOutgoing Bandwidth 160 MbpsHDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 ×1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 HzVGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 HzVideo Output Mode HDMI/VGA independent outputCVBS Output N/AAudio Output 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)DecodingDecoding Format H.265/H.265+/H.264+/H.264Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIFSynchronous playback 8-ch

Read more less

High quality imaging with 4 MP resolution Efficient H.265+ compression technology Clear imaging even with strong back lighting due to 120 dB WDR Up to 256 GB memory card slot for storage 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Water and dust resistant (IP67) and vandal proof (IK10) EXIR 2.0: advanced infrared technology with long IR range Camera : Image Sensor1/3" Progressive Scan CMOS Max. Resolution2560 × 1440 Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR Shutter Speed1/3 s to 1/100,000 s Wide Dynamic Range120 dB Day & Night IR Cut Filter Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° Lens Lens Type Varifocal Lens, motoried lens, 2.8 to 12 mm Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35° Lens MountØ14 Iris Type Fixed ApertureF1.6 Illuminator IR Wavelength850 nm IR Range Up to 30 m Video Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 8 M bps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Region of Interest (ROI) 1 fixed region for main stream   Audio Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate-S: 8 kHz/16 kHz Environment Noise Filtering-S: Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View Up to 6 channels   API Open Network Video Interface, ISAPI User/Host Up to 32 users. 3 levels: administrator, operator and user Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage ClientiVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Image Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch Auto, Schedule, Day, Night Image Enhancement BLC, 3D DNR Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm -S: 1 input,1 output, max. 12 VDC, 30 mA   Reset Key Yes Event Basic Event Motion detection, video tampering alarm, exception Linkage Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture General Power 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W Camera Material Metal Camera DimensionØ141 mm × 99.9 mm (Ø5.6" × 3.9") Package Dimension140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1") Camera Weight Approx. 820 g (1.8 lb.) With Package Weight Approx. 1200 g (2.6 lb.) Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian   General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Electrical Safety ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Read more less

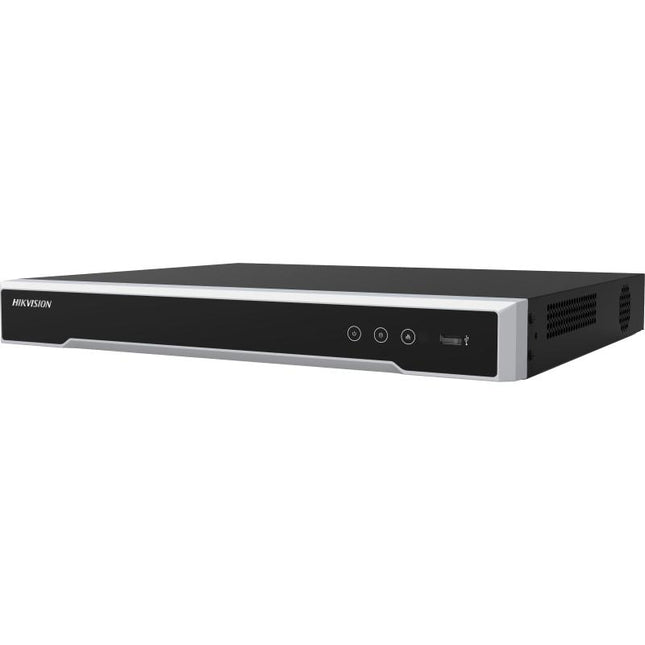

Up to 16-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity Up to 160 M bps incoming bandwidth Motion Detection 2.0 Human/Vehicle Analysis4 Video and Audio IP Video Input16-ch HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output Mode HDMI/VGA simultaneous output Incoming Bandwidth160 M bps Outgoing Bandwidth80 M bps Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω) Decoding Decoding FormatH.265+,H.265,H.264+,H.264 Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous playback16-ch Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Network Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface16, RJ-45 10/100 M bps self-adaptive Ethernet interface Power≤ 150W Standard IEEE 802.3 af/at RAID RAID Type No Auxiliary Interface SATA2 SATA interfaces Capacity Up to 8TB capacity for each disk USB Interface2 × USB 2.0 General Power Supply100-240V～, 50/60Hz, 3.2A MAX Consumption≤ 15W Working Temperature-10 to +55º C (+14 to +131º F) Working Humidity10 to 90 % Chassis1U chassis Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0") Weight≤ 2.6 kg (5.7 lb)

Read more less

High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Built-in microphone for real-time audio security Water and dust resistant (IP67) Camera Image Sensor1/3" Progressive Scan CMOS Max. Resolution2560 × 1440 Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON) Shutter Time1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143° 4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110° Lens MountM12 Iris Type Fixed ApertureF1.0 DORI DORI 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m Illuminator Supplement Light Type IR, White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength850 nm Video Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate32 Kbps to 16 M bps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Scalable Video Coding (SVC)H.264 and H.265 encoding Region of Interest (ROI)1 fixed region for main stream Audio Audio Type Mono sound Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate8 kHz/16 kHz Environment Noise Filtering Yes Network ProtocolsIPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK User/Host Up to 32 users 3 user levels: administrator, operator, and user Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) ClientiVMS-4200,Hik-Connect Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR)120 dB SNR≥ 52 dB Image EnhancementBLC,HLC,3D DNR Privacy Mask4 programmable polygon privacy masks Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage-F: Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB Built-in MicrophoneYes,1 built-in microphone Reset Key-F: Yes Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception Linkage Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP, notify surveillance center, send email, trigger capture General Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W Material Front cover: metal, body: plastic, bracket: plastic Dimension69.8 mm × 67.9 mm × 172.9 mm (2.7" × 2.7" × 6.8") Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55") Weight Approx. 550 g (1.2 lb.) With Package Weight Approx. 800 g (1.8 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language English, Ukrainian General Function Heartbeat, anti-banding, mirror, password protection, password reset via email Approval EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 Safety   CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 ProtectionIP67: IEC 60529-2013

Read more less

Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces H.265+/H.265/H.264+/H.264 video formats Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity Up to 160 M bps incoming bandwidth Adopt Hikvision Acusense technology to minimize manual effort and security costs AI by Device Facial recognition, perimeter protection, motion detection 2.0AI by CameraFacial recognition, perimeter protection, throwing objects from building, motiondetection2.0, ANPR, VCAFacial RecognitionFacial Detection and Analytics Face picture comparison, human face capture, face picture searchFace Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4MB, total capacity ≤ 1 GB)Facial Detection and AnalyticsPerformance1-ch, 8 MPFace Picture Comparison 4-chMotion Detection 2.0By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis forhuman and vehicle recognition to reduce false alarmBy Camera All channelsPerimeter ProtectionBy Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehiclerecognition to reduce false alarmBy Camera All channelsVideo and AudioIP Video Input 16-chIncoming Bandwidth 160 M bpsOutgoing Bandwidth 160 M bpsHDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 ×1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 HzVGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 HzVideo Output Mode HDMI/VGA independent outputCVBS Output N/AAudio Output 1-ch, RCA (2.0 V p-p, 1 KΩ, using the audio input)Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)DecodingDecoding Format H.265/H.265+/H.264+/H.264Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIFSynchronous playback 16-ch

Read more less

Camera Image Sensor 1/2.8" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Lens Focal Length & FOV 2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127° 4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105° 6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63° Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Lens Mount M12 Iris Type Fixed Aperture F1.6 Depth of Field 2.8 mm: 1.7 m to ∞ 4 mm: 2.6 m to ∞ 6 mm: 5.8 m to ∞ DORI DORI 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m 4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m 6 mm, D: 176 m, O: 70 m, R: 35 m, I: 17 m Illuminator Supplement Light Type IR, White Light Supplement Light Range Up to 40 m Smart Supplement Light yes IR Wavelength 850 nm Video Main Stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. Video Bit Rate 32 Kbps to 16 M bps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 and H.265 encoding Bit Rate Control CBR,VBR Region of Interest (ROI) 1 fixed region for main stream and sub-stream Target Cropping yes Audio Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate -2U: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering -2U: Yes   Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Web Socket, Web Sockets Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface User/Host   Up to 32 users 3 user levels: administrator, operator, and user Client   iVMS-4200,Hik-Connect,Hik-Central Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Web Browser Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+   Image Image Parameters Switch YES Day/Night Switch Day, Night ,Auto, Schedule Image Settings Rotate mode Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Image Enhancement BLC,HLC,3D DNR   Privacy Mask 8 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB Reset Key YES Audio Built-in Microphone: -2U: Dual Array Microphone Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception Smart Event   Unattended baggage detection, object removal detection, Face detection Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture Deep Learning Function Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) General Power 12 VDC ± 25%, 0.5 A, max. 6 W, reverse polarity protection,Ø5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, max. 7.5 W Material Metal Dimension Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94") Package Dimension 234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61") Weight   Approx. 515 g (1.1 lb.) With Package Weight   Approx. 760 g (1.7 lb.) Storage Conditions   -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions   -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function   Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding   Approval EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015   Safety   CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection   IP67: IEC 60529-2013   High quality imaging with 8 MP resolution Acusense: Focus on human and vehicle classification based on deep learning Smart Hybrid Light: Integrates IR and White lights, 4 supplemental lighting modes -2U: Built-in dual microphone for real-time high quality audio security Clear imaging against strong back light due to 120 dB true WDR technology Efficient H.265+ compression technology Water and dust resistant (IP67)

Read more less

Camera Image Sensor   1/1.8" Progressive Scan CMOS Max. Resolution   3840 × 2160 Min. Illumination   Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time   1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment   Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°   Lens Focal Length & FOV 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2° Lens Type   Fixed focal lens, 2.8 and 4 mm optional Lens Mount M16 Iris Type Fixed Aperture F1.0 Depth of Field 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞ DORI DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m Illuminator Supplement Light Type IR, White Light Supplement Light Range Up to 40 m Smart Supplement Light yes IR Wavelength 850 nm Video Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. Video Bit Rate 32 Kbps to 16 M bps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 and H.265 encoding Bit Rate Control CBR,VBR Region of Interest (ROI)   1 fixed region for main stream and sub-stream   Audio Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate   -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) Audio Sampling Rate   -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering -2U: Yes   Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Web Socket, Web Sockets, SRTP, SFTP Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) User/Host   Up to 32 users 3 user levels: administrator, operator, and user Client   iVMS-4200,Hik-Connect,Hik-Central Network Storage   NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+   Image Image Parameters Switch YES Day/Night Switch Day, Night ,Auto, Schedule Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Wide Dynamic Range (WDR) 130 dB SNR ≥ 52 dB Image Enhancement BLC,HLC,3D DNR   Privacy Mask 4 programmable polygon privacy masks Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage   Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB Reset Key YES Audio Built-in Microphone: -2U: Dual Array Microphone Event Basic Event   Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception Smart Event     Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection   Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email Deep Learning Function Perimeter Protection   Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) General Power   12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8 W Material   Cover: Metal, main body: Metal Dimension   Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") Package Dimension   170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") Weight   Approx. 770 g (1.7 lb.) With Package Weight   Approx. 1040 g (2.3 lb.) Storage Conditions   -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions   -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function   Heartbeat, mirror, password reset via email, pixel counter, anti-banding   Approval EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015   Safety   UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 Environment   CE-RoHS: 2011/65/EU Protection   IP67: IEC 60529-2013 High quality imaging with 8 MP resolution Smart Hybrid Light: advanced technology with long range Clear imaging against strong back light due to 130 dB WDR technology Efficient H.265+ compression technology Focus on human and vehicle classification based on deep learning -U: Built-in microphone for real-time audio security Water and dust resistant (IP67)

Read more less

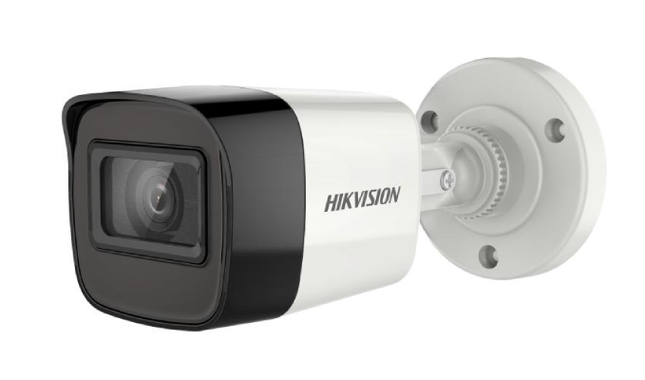

  Camera Min. Illumination   Color: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR Image Sensor   8.29 megapixel progressive scan CMOS Max. Resolution   3840 (H) × 2160 (V) Shutter Time   PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s Day & Night IR cut filter Angle Adjustment   Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°   Signal System       PAL/NTSC     Lens Lens Type   2.8 mm, 3.6 mm, 6 mm fixed lens Lens Mount M16 Focal Length & FOV Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm) Illuminator Supplement Light Type IR Supplement Light Range     Up to 30 m     Image Image Settings   Brightness; Sharpness; Smart IR;AGC   Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N Day/Night Mode Auto/Color/BW (Black and White) Wide Dynamic Range (WDR) Digital WDR Image Enhancement BLC;HLC   Noise Reduction 2D DNR White Balance     Auto/Manual     Interface Video Output   1 HD analog output; Switchable TVI/AHD/CVI/CVBS     General Power   12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. Max. 5.3 W   Material   Metal Dimension 58 mm × 61 mm × 159.8 mm (2.28" × 2.40" × 6.42") Approx. 345 g (0.76 lb.) Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Communication   HIKVISION-C Language   English Approval Protection   IP67   8 MP bullet camera EXIR 2.0: advanced infrared technology with 30 m IR distance Water and dust resistant (IP67) 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
